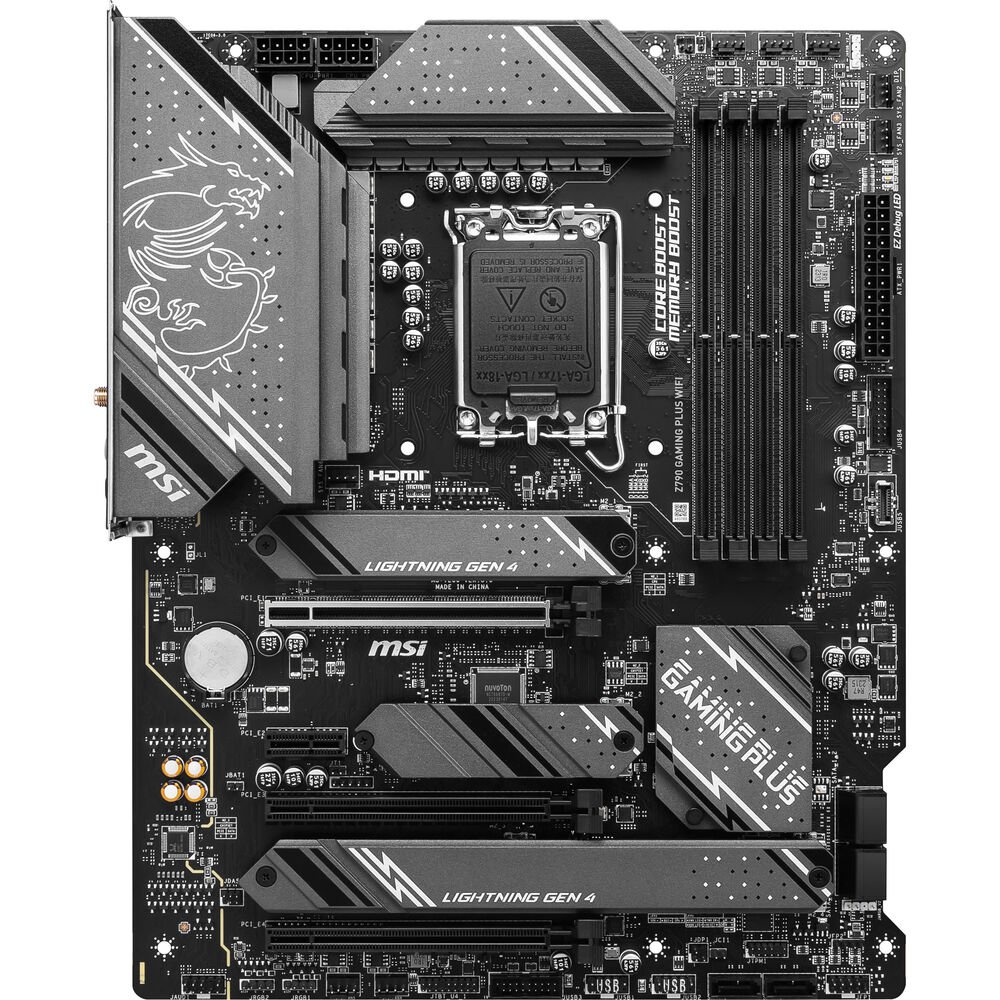

MSI Z790 GAMING PLUS WiFi Specs
Key Specs
| Chipset | Intel Z790 |
| CPU Socket | LGA 1700 |
| Memory Slots | 4x 288-Pin |
| Memory Type Support | DDR5, 7200 MT/s Maximum Supported Speed |
| M.2 Slots | 22110 / 2280 |
| Expansion Slots | 1x PCIe 5.0 x16
1x PCIe 4.0 x4
2x PCIe 3.0 x1 |
| Wi-Fi | Wi-Fi 6E (802.11ax) |
| Form Factor | ATX |
CPU
| Chipset | Intel Z790 |
| CPU Socket | LGA 1700 |
Back Panel I/O
| USB I/O | 1x USB-C (USB 3.2 Gen 2×2)
1x USB-A (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
4x USB-A (USB 2.0) |
| Thunderbolt I/O | No |
| Display I/O | 1x HDMI 2.1 Output
1x DisplayPort Output |
| Audio I/O | 6x 1/8″ / 3.5 mm |
| Ethernet / Controller | 1x Intel 2.5Gigabit |
| PS/2 | 1x PS/2 |
| Wi-Fi Antenna | 2x Connector |
| Buttons | BIOS Flashback |
Memory
| Memory Slots | 4x 288-Pin |
| Memory Type Support | DDR5, 7200 MT/s Maximum Supported Speed |
| Maximum Capacity | 192 GB |
| Channel Architecture | Dual Channel |
| ECC Support | Non-ECC Unbuffered |
Storage Expansion
| SATA | 6x SATA III |
| M.2 Slots | 1x M.2 (M Key) 22110/2280/2260/2242 (PCIe 4.0 x4)
1x M.2 (M Key) 2280/2260/2242 (PCIe 4.0 x4)
2x M.2 (M Key) 2280/2260/2242 (PCIe 4.0 x4 / SATA III) |
| Optane Memory Support | No |
| RAID Support | RAID 0, 1, 5, 10 (SATA)
RAID 0, 1, 5, 10 (M.2) |
Internal I/O
| Expansion Slots | 1x PCIe 5.0 x16
1x PCIe 4.0 x4
2x PCIe 3.0 x1 |
| USB | 1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
2x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 4 USB-A Port)
2x USB 2.0 Header (Supports 4 USB-A Port) |
| Air Cooling | 1x 4-Pin CPU
6x 4-Pin System |
| Liquid Cooling | 1x 4-Pin Pump |
| Power Connectors | 1x 24-Pin Mainboard
2x 8-Pin ATX |
| Security | Chassis Intrusion, TPM Module |
| LED Header | 8x RGB |
| Diagnostics | Clear CMOS |
| Add-On | 1x USB4 Expansion Card Header |
Audio
| Audio Codec | Realtek ALC897 (7.1-Channel) |
| DAC | No |
Wireless
| Wi-Fi | Wi-Fi 6E (802.11ax): Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2) |
| Bluetooth | Bluetooth 5.3 |
Software
| OS Compatibility | Windows 10 to 11 (64-Bit Only) |
Physical
| Form Factor | ATX |
| Dimensions | 12 x 9.6″ / 30 x 24 cm |
Packaging Info
| Package Weight | 3.91 lb |
| Box Dimensions (LxWxH) | 13.6 x 10.7 x 2.9″ |
