Intelligently Designed

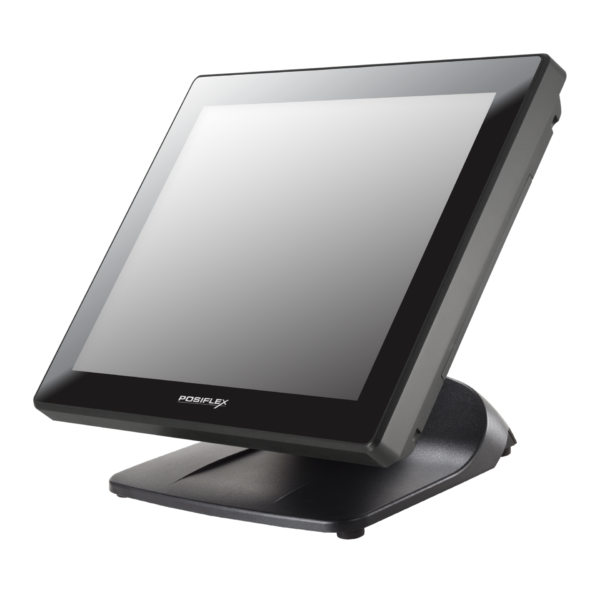

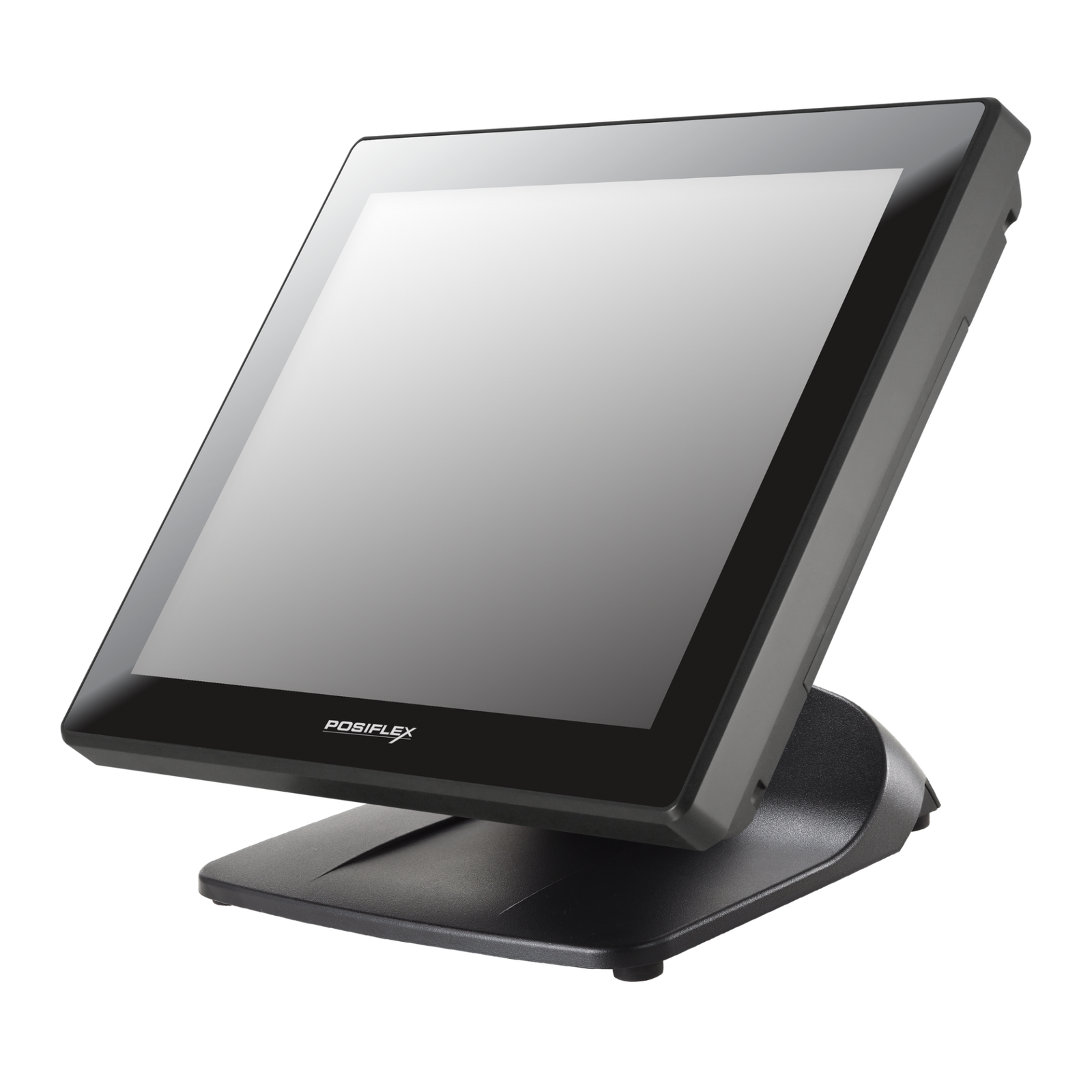

Equipped with an adjustable base, PS-3615-G2 enables the ultimate flexibility for space-limited environments.
Expanded Capability
By separating a full set of ports into the top of the terminal, PS-3615-G2 provides extensive connections, easy accessibility, and reliable peripheral cabling.
Compact
Equipped with Intel® Elkhart Lake processor, PS-3615-G2 comes with a 15″ PCAP wide touchscreen and is tailored to operate in an ever-changing retail environment.
Specification
| System-Configuration | PS-3615-G2 |
|---|---|
| Processor | Intel Elkhart Lake Celeron J6412, up to 2.60 GHz, 1.5M Cache |
| System Memory | DDR4 SO-DIMM x 1, max. 32GB |
| Storage Device | M.2 connector x 1 (support SATA signal only) |
| RAID Function | N/A |
| Intel vPro Support | N/A |
| TPM | TPM 2.0 |
| Power Supply | 12V/60W |
| OS Support | Windows 10 IoT LTSC Windows 11 IoT LTSC |
| Display & Touch | |
| LCD | 15″ TFT LCD |
| Resolution | 1024 x 768 |
| Touch | True-flat PCAP touch with multi-touch support (IP65 on front panel) |
| I/O Expansion | |
| Serial Port | DB9 x 3 + RJ50 x 1, 5V/12V support on all COM ports |
| Parallel Port | via optional conversion cable through service window |
| Standard USB Port | USB 3.0 x 2+ USB 2.0 x 3 |
| PoweredUSB Port | N/A |
| OTG USB | N/A |
| LAN Port | 10/100/1000 Mb x 1 |
| Display Port | VGA x 1 (12V support for Posiflex monitors) |
| CR Port | RJ11 x 1, control 2 CR via optional Y-cable, support 24V cash drawer |
| PS2 Port | via optional conversion cable through service window |
| UPS Port | N/A |
| Audio | Buzzer x 1; Optional internal 2W speaker x 1 |
| Expansion Slot | M.2 slot x 1 |
